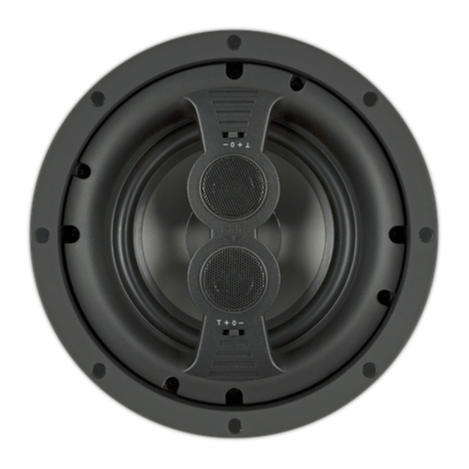

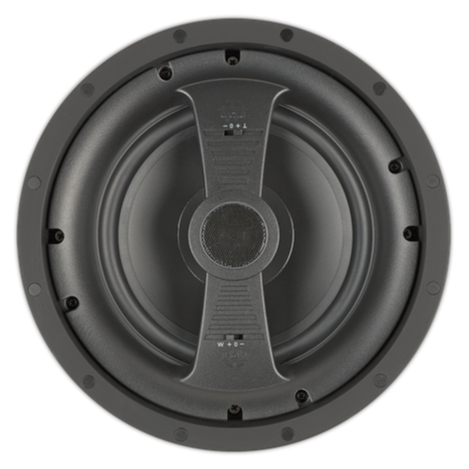

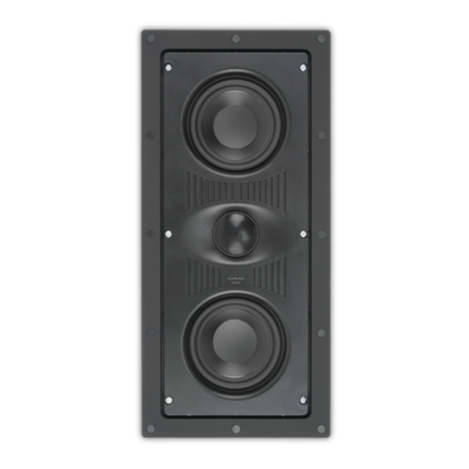

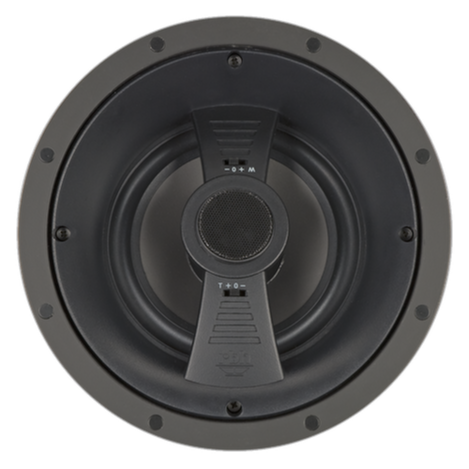

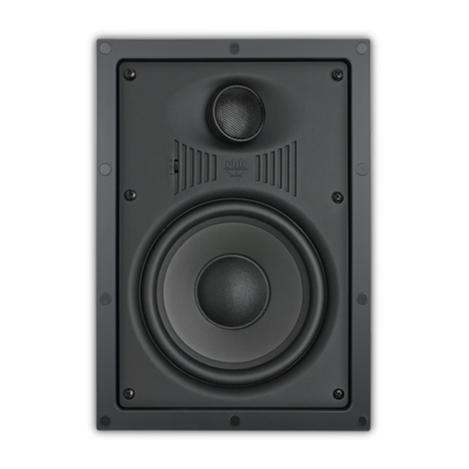

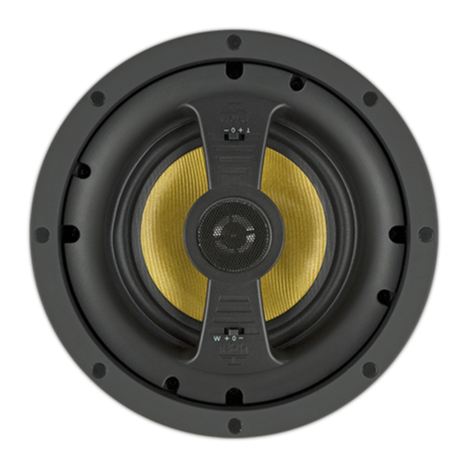

VF SERIES
fiberglass cone woofers

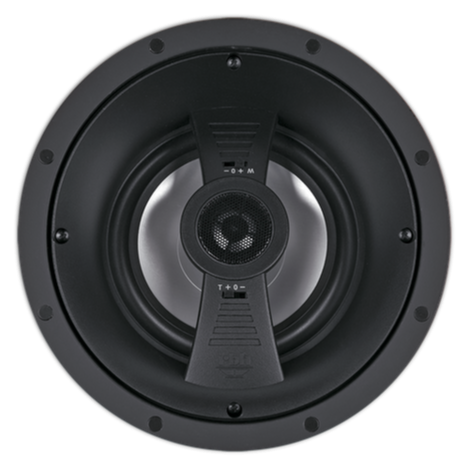

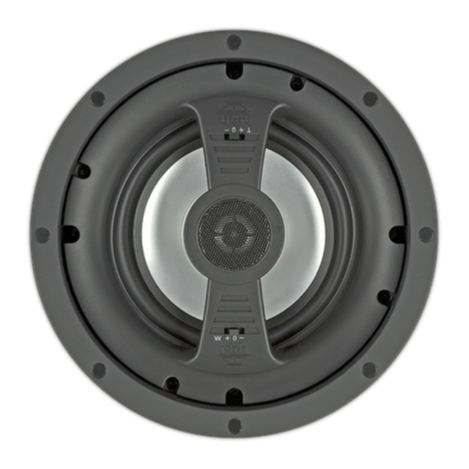

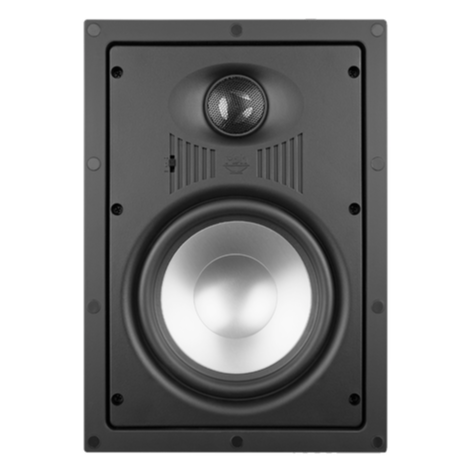

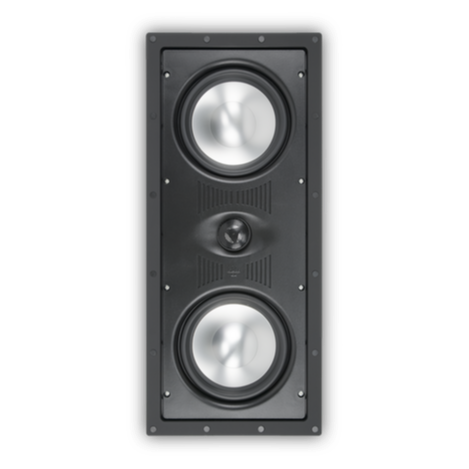

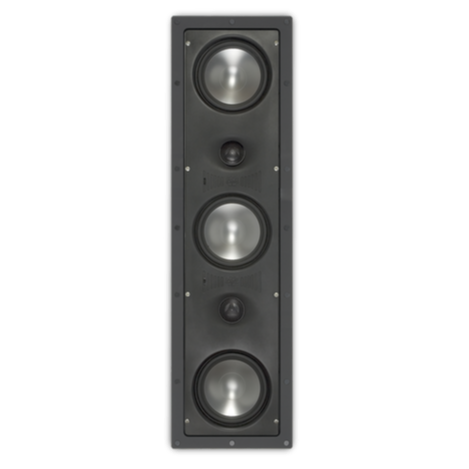

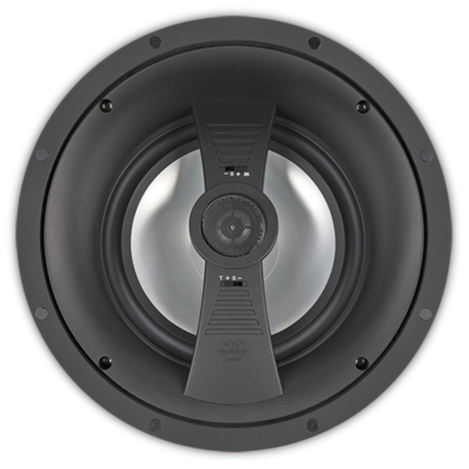

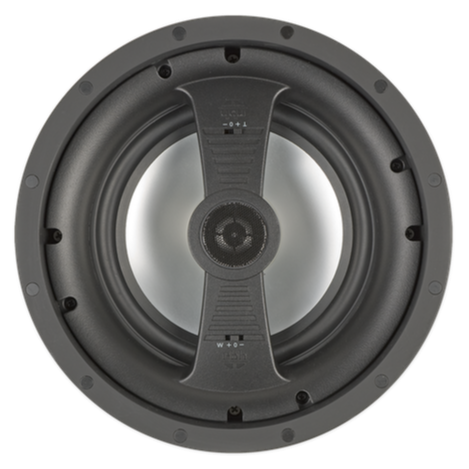

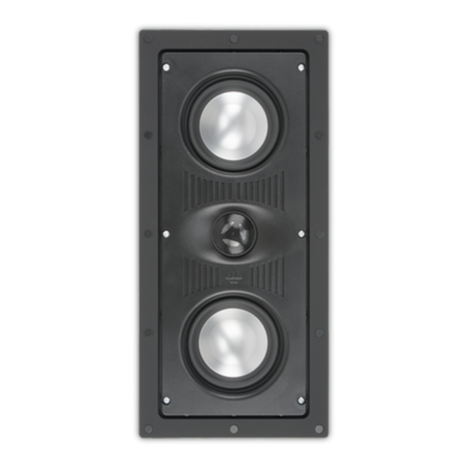

VM SERIES
metal cone woofers
SOUNDBAR AND ON‑WALL SPEAKERS
Sleek & Contemporary Design
The Ultra Series speakers are the answer to many installation conundrums. It’s designed with magnetic inset black fabric grille complements most any décor.
At only 1-5/8-inches thick it fits almost anywhere you can pull a wire through a wall. The pull-through ez-wire terminal cup makes connection a breeze. Add the features of either traditional mounting using the installed steel keyhole cups in back, or the super-fast and very secure direct-from-front screw-through mounts easily and quickly installed. Ultra Series speakers provide true and clear RBH sound quality in locations previously unobtainable. Cement, plastered, block or brick walls, or the rental that won’t allow holes cut to mount a traditional in-wall. Other than whole-house audio capability, combine the Ultra-1 with the Ultra-3 LCR on-wall and an RBH Subwoofer and you’ve got a surround-sound system ready to go in minutes.
The Innovative and proprietary inverted, domed aluminum 4-inch woofers and aluminum tweeters with textured phase plugs make it all possible. We recommend pairing with an RBH subwoofer for best full–range performance.
The Ultra-3 is custom sized to fit most on-wall TVs! It can be custom cut to match TV widths of 47 to 63 inches which fit most popular sizes. It still looks great under wider TVs as well. Not plastic, it’s MDF with internal bracing and sealed separate internal chambers for discreet left, center, and right channels to produce the great sound you need and expect from RBH. The end caps are MDF covered in high gloss black paint to match that TV and bring it all together. The Ultra Series provides effortless, quick, brilliant sound.
Yes, it’s cool. It’s fast to mount. And….it’s custom sized to fit most on-wall TVs. It still looks great under wider TVs as well. The Ultra-3 features contemporary design, magnetic mounted black fabric grille, and is only 1-5/8-inches deep.
Constructed not of plastic, but of MDF with internal bracing and separately sealed internal chambers for discrete left, center, and right channels to produce the great sound you need and expect from RBH. The end caps are also MDF covered in high-gloss black paint. Innovative and proprietary inverted, domed aluminum 4-inch woofers and aluminum tweeters with textured phase plugs make the small size and great sound possible. Our ez-wire terminals and fast mounting, with highly secure screw-through front mounts, make the Ultra-3 a joy to install. Combine the Ultra-3 with an RBH subwoofer and Ultra-1 speakers as surrounds for a beautiful surround sound solution. The Ultra-3 provides quick and brilliant sound.
The SB-39 Soundbar Speaker Bracket makes installation of this product even easier featuring, above or below the TV two-way installation by attaching to the TV wall bracket or directly to the TV.
SPECIFICATIONS
- Ultra-3
- Ultra
- On-wall/LCR Soundbar Speaker
- 100Hz-20kHz (±3dB)
- 84dB (2.83V @ 1 Meter)
- 20-120 Watts
- (6) 4" (102mm) Proprietary Inverted Aluminum Cone
- (3) 1" (25mm) Aluminum Diaphragm Neodymium Magnet Tweeter with Textured Phase Plug
- No
- Yes
- 3,000 Hz
- 12dB/Octave
- 8 Ohms x3
- MDF/Matte Texture Black with High-gloss End Accent Caps
- Black Fabric
- Width (custom fit from):
48" (1219mm) (minimum) to 73.25" (1838mm) (maximum) - Height: 6.6875" (170mm)
Depth: 1.625" (41mm D) - 14.625" (372mm)
- 15.8 lbs. (7.12 kg) 73.25" Wide
- 12.5 lbs. (5.74 kg) 63" Wide
- 9.5 lbs. (4.30 kg) 47" Wide
- 5 Years
Did You Know?
Our Ultra-3 series can be used in multiple ways including: As a dedicated center channel, as an LCR itself (wiring instructions included), in combination with 2 other Ultra-3's to create a true (and awesome) LCR configuration!
This versatile on-wall speaker is the answer to many installation conundrums. It’s s designed with a magnetic mounted black fabric grille complements most any décor. At only 1-5/8-inches thick, 18-inches tall and just over 6½-inches wide, it fits almost anywhere you can pull a wire through a wall. The pull-through ez-wire terminal cup makes connection a breeze.
Add the features of either traditional mounting using the installed steel keyhole cups in back, or the fast and highly secure screw-through front mounts and you will soon find that this and its mate, the Ultra-3, are easily and quickly installed. The Ultra-1 provides true and clear RBH sound quality in locations previously unobtainable. These can be places such as cement, plastered, block or brick walls, or the rental that won’t allow holes cut to mount a traditional in-wall. Combined with the Ultra-3 LCR on-wall and an RBH subwoofer and you’ve got a surround-sound system ready to go in minutes. The proprietary inverted aluminum cone 4-inch woofers and aluminum tweeter with textured phase plug are the innovations that enable such a thin cabinet. We recommend pairing with an RBH subwoofer for best full–range performance. This is a fast and easy sound solution.
SPECIFICATIONS
- Ultra-1
- Ultra
- On-wall Speaker
- 100Hz-20kHz (±3dB)
- 84dB (2.83V @ 1 Meter)
- 20-120 Watts
- (2) 4" (102mm) Proprietary Inverted Aluminum Cone
- (1) 1" (25mm) Aluminum Diaphragm Neodymium Magnet Tweeter with Textured Phase Plug
- No
- Yes
- 3,000 Hz
- 12dB/Octave
- 8 Ohms
- MDF/Matte Texture Black with High-gloss End Accent Caps
- Black Fabric
- 6.6875" W x 18" H x 1.625" D
- (170mm W x 457mm H x 41mm D)
- 3.85 lbs. (1.75 kg)
- 5 Years
Did You Know?
Adding an actively powered subwoofer can greatly increase your system’s dynamic range, bass extension, midrange clarity, and ability to play louder without any strain on your receiver and/or pre-amp
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.
SPECIFICATIONS
- PM-8
- Active (Powered) 2-way Monitor Speaker
- Bi-amplified Class D
- 32Hz-20kHz (±3dB)
- n/a
- 400 Watt Amplifier Included
- 400 Watts
- (1) 8" (203mm) Reference Aluminum Cone
- (1) 1.38" x 1" (35mm x 25mm) AMT
- 110V-240V Auto Adjusting
- No
- No
- 2,500 Hz
- 48dB/Octave
- n/a
- Yes (XLR/Adapter)
- Medium Density Fiberboard (MDF)/Black
- Black Fabric
- 11-3/8" W x 19-1/4" H x 13-5/16" D
- (289mm W x 489mm H x 338mm D)
- 43.35 lbs. (19.7 kg)
- 5 Years/3 Years*
* Warranty period: 5 years on the cabinet and woofers, and 3 years on the amplifier.
Did You Know?
Each RBH Sound speaker series can be mixed and combined within the like series, creating a vast selection of options to create a unique home theater experience
Most traditional studio monitors are basic; they have a simple amplifier and a fixed passive crossover which limits the functionality of the speaker; either near or far field, but typically not both. The PM-8 is different. The PM-8 is built on the principle that powered studio monitors should be adaptable for the size of the studio, and for near or far field use. Removing the use restriction, the PM-8 can be used in a variety of circumstances, each with impeccable results.
At the heart of the PM-8 are RBH’s Signature Series drivers: for bass and midrange, an 8-inch aluminum cone mid/woofer (also used in our award winning flagship SVTR tower) and for treble, an AMT (Air Motion Transformer) tweeter. This proprietary duo is powered by a specialized dual channel class D amplifier supplying 150 Watts to the tweeter and 250 Watts to the woofer. The on-board Digital Signal Processor (DSP) features a Finite Impulse Response (FIR) filter to enhance phase correction of the speaker's response, and also doubles as an active crossover network. Active crossover networks provide extreme flexibility and eliminate traditional, power-robbing passive components.
The PM-8’s amplifier has level and preset DSP selection controls as well as an XLR balanced input and throughput; also included is an RCA to XLR connector for convenience with unbalanced connections. The DSP presets allow the speaker to be optimized for near-field and far-field use.
The PM-8 is available with or without elegant side accent panels made of high-density composite materials in an array of colors. These panels help to eliminate cabinet vibrations, further enhancing the PM-8’s performance and premium sound quality.
SPECIFICATIONS
- PM-8
- Active (Powered) 2-way Monitor Speaker
- Bi-amplified Class D
- 32Hz-20kHz (±3dB)
- n/a
- 400 Watt Amplifier Included
- 400 Watts
- (1) 8" (203mm) Reference Aluminum Cone
- (1) 1.38" x 1" (35mm x 25mm) AMT
- 110V-240V Auto Adjusting
- No
- No
- 2,500 Hz
- 48dB/Octave
- n/a
- Yes (XLR/Adapter)
- Medium Density Fiberboard (MDF)/Black
- Black Fabric
- 11-3/8" W x 19-1/4" H x 13-5/16" D
- (289mm W x 489mm H x 338mm D)
- 43.35 lbs. (19.7 kg)
- 5 Years/3 Years*
* Warranty period: 5 years on the cabinet and woofers, and 3 years on the amplifier.
