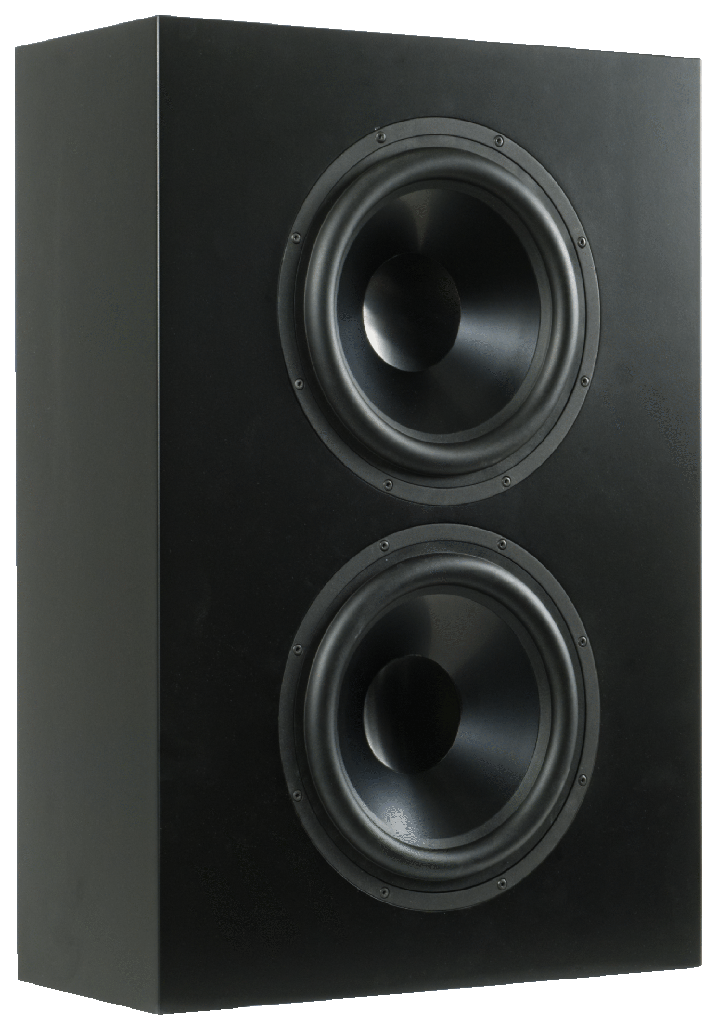

1212-SL

Signature REFERENCE Dual 12" On-wall Subwoofer
• black or white satin finish
• Custom On-Wall Subwoofer
• Grille optional
• Shane Lee Signature Sub

(PRICE PER SINGLE)

Terms and Conditions

The 1212-SL is a custom on-wall subwoofer based on and adopting the formula from the SI-1212/R9.

The SI-1212/R9 is a reference dual 12” non-powered aluminum subwoofer. It is designed to be installed in a baffle wall or between 2x10 studs. The cabinet is installed during framing without the included baffle assembly. Drywall is finished to the metal mud rings. After drywall and painting are complete, the baffle assembly with drivers is installed, leaving a clean presentation of the exposed subwoofer. The SI-1212/R9 is the perfect subwoofer for home theaters, listening rooms, or anywhere strong, reference level bass is needed without being seen. We recommend using the RBH DA-1802 or DA-2602 for powering this subwoofer.

(Click to enlarge)

SI-1212/R9

SERIES

Signature Reference Series | Subwoofers

SYSTEM TYPE

Sealed, in-wall

DRIVE UNITS

(2) 12" (305mm) Reference Aluminum Cone High Power

FREQUENCY RESPONSE

25Hz-150Hz (±3dB)

FREQUENCY RESPONSE when using DA Series Subwoofer Amplifier

18Hz-150Hz (±3dB)

SENSITIVITY

91dB (2.83 Volts @ 1 Meter)

RECOMMENDED POWER

500-2400 Watts
(DA-Series Subwoofer amplifiers recommend)

IMPEDANCE

4 Ohm

IN-WALL CABINET DETAILS

High Density Fiberboard (HDF)

Black Paint

BAFFLE ASSEMBLY DETAILS

High Density Fiberboard (HDF)

Black Satin Paint

13-1/2” W x 27-1/16"H

(343 x 687mm)

GRILLE DETAILS

Black or White Fabric

FINISHED DIMENSIONS

14” W x 56” H x 10-1/2” D

(356 x 1423 x 267mm)

WEIGHT

92 lbs

WARRANTY

*10 year limited

COMPONENTS

IN-WALL CABINET

SI-1212/R9 In-Wall Cabinet

BAFFLE ASSEMBLY

SI-1212/R9 Baffle Assembly

GRILLE OPTIONS

SI-1212/R9 Grille White

If you would like to submit a comment about this product or customer service and have it posted, please send your comments to: info@rbhsound.com

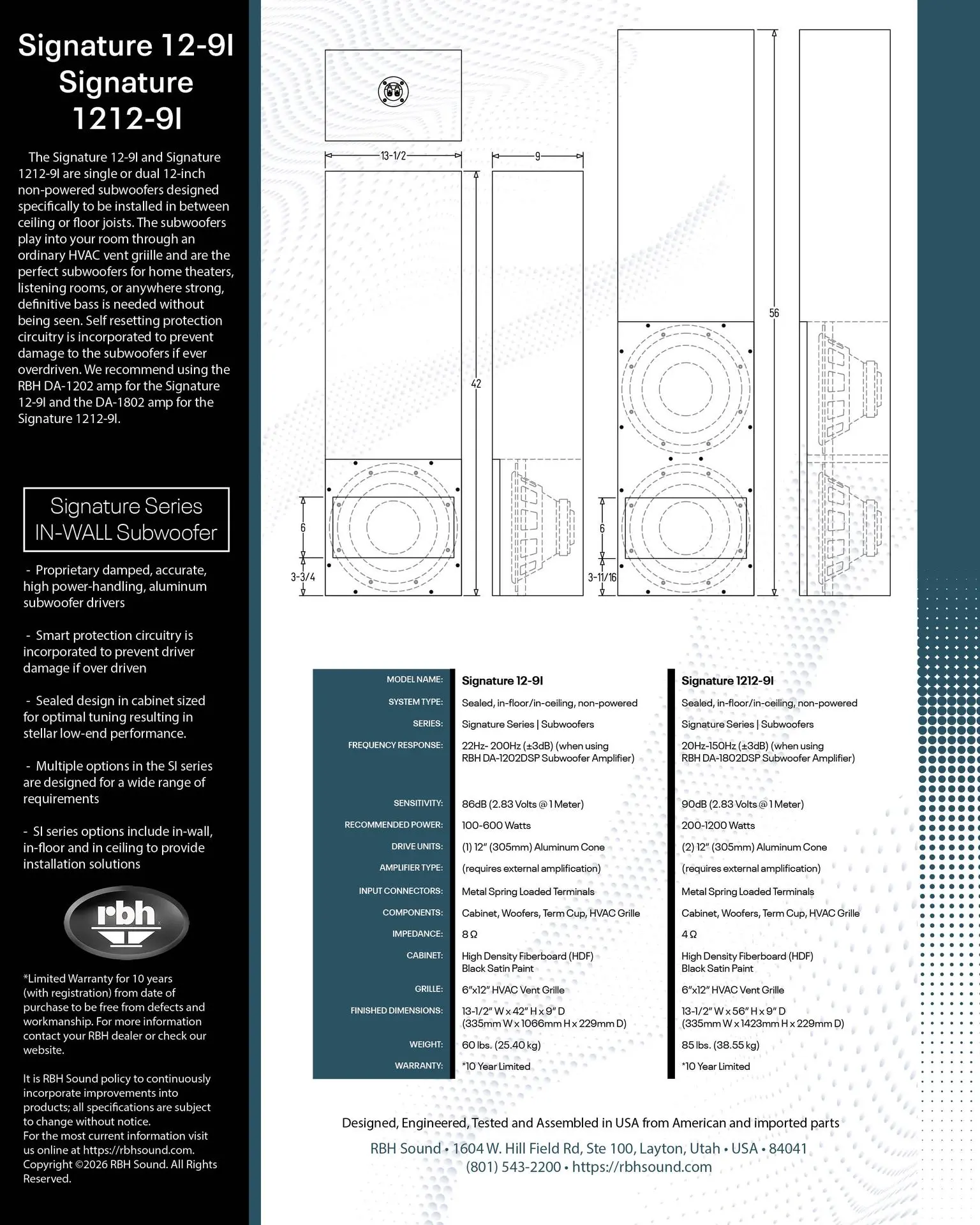

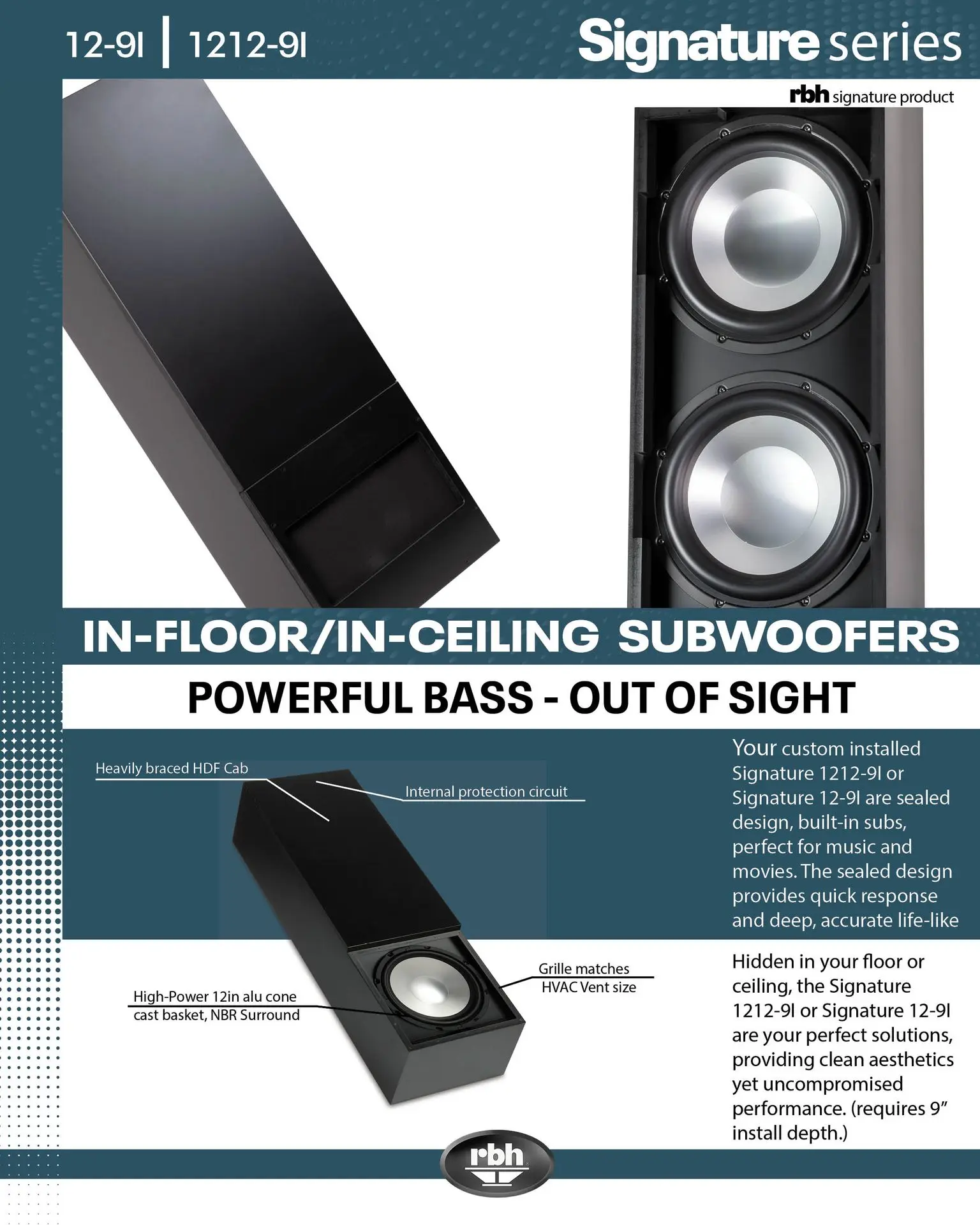

Brochure
