SIGNATURE IN‑WALL SERIES

SI-12/9 IN-FLOOR/IN-CEILING SUBWOOFER

The SI-12/9 is a 12-inch, non-powered subwoofer designed specifically to be installed in the ceiling or floor. Smart protection circuitry is incorporated to prevent damage to the subwoofer if it is ever overdriven. The SI-12 appears as an ordinary heating vent and is the perfect subwoofer for home theaters, listening rooms or anywhere strong, definitive bass is needed without being seen.

For all Signature Series In-wall Subwoofers click here.

SOLD THROUGH
AUTHORIZED DEALERS

(Includes one subwoofer.
Does not include installation.)

  FIND A DEALER

Speaker Combinations

Each RBH Sound speaker series can be mixed and combined within the like series, creating a vast selection of options to create a unique home theater experience.

SPECIFICATIONS
Model Name:
SI-12/9
Series:
Signature In-wall
System Type:
In-floor/In-ceiling Subwoofer
Frequency Response:
30Hz-200Hz (±3dB)
Sensitivity:
86dB (2.83V @ 1 Meter)
Recommended Power:
100-500 Watts
Subwoofer:
(1) 12" (305mm) Aluminum Cone
Crossover Frequency:
N/A
Crossover Slope:
N/A
Impedance:
4 Ohms
Cabinet Material/Color:
Medium Density Fiberboard (MDF)/Black
Cabinet Finish:
Black Enclosure
Baffle and Grille:
Baffle Black; Grille Black.
Grille Options:
Heat Vent (in-floor), Cold-air Return (in-ceiling)
Enclosure Dimensions:
13-1/2" W x 42" H x 9" D (335mm W x 1066mm H x 229mm D)
Baffle Opening:
6" W x 12" H (311mm W x 359mm H)
Weight:
60 lbs. (25.40 kg)
Warranty:
5 Years
LITERATURE

Signature Series SI Subwoofer Installation

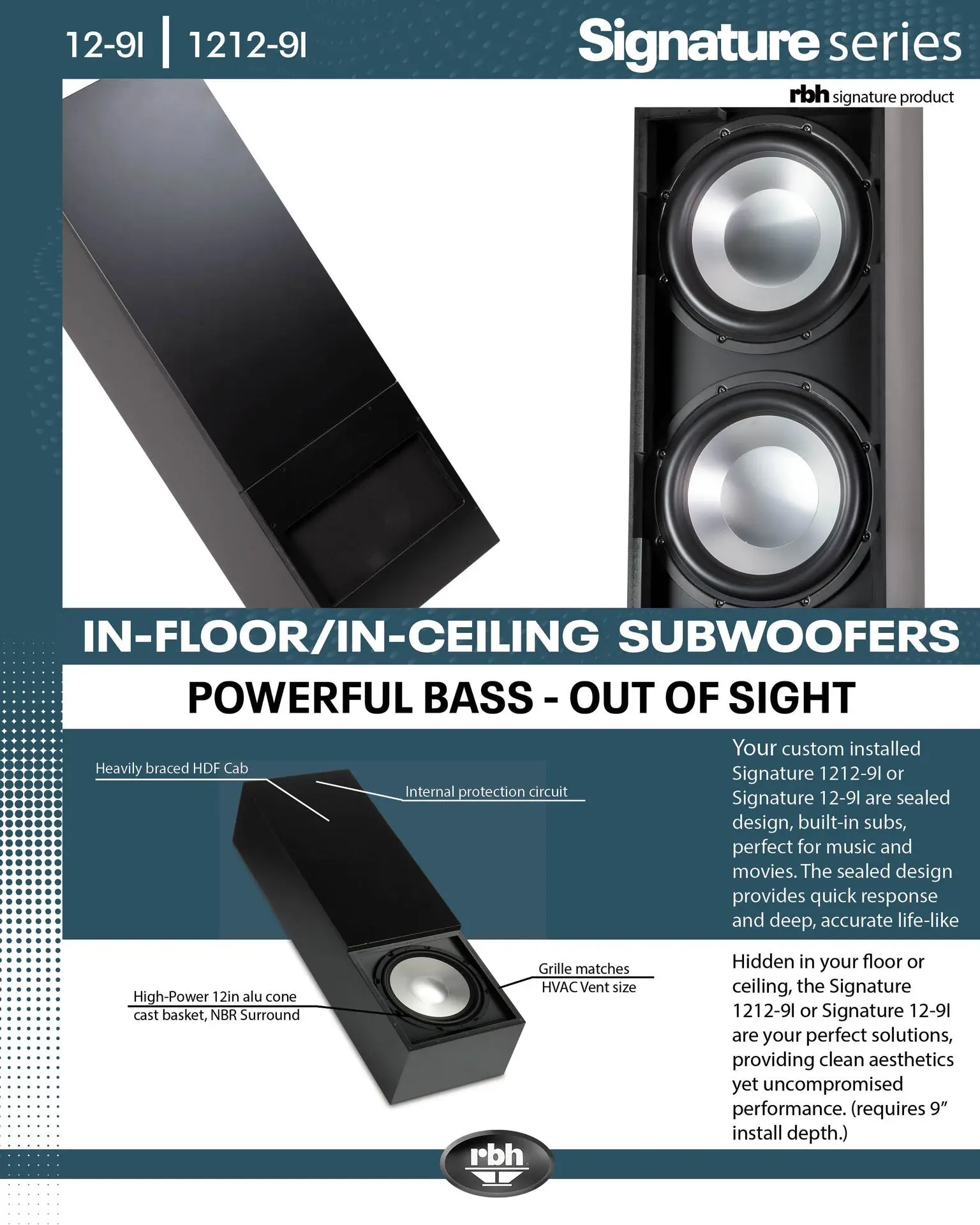

Signature Series In-wall Brochure

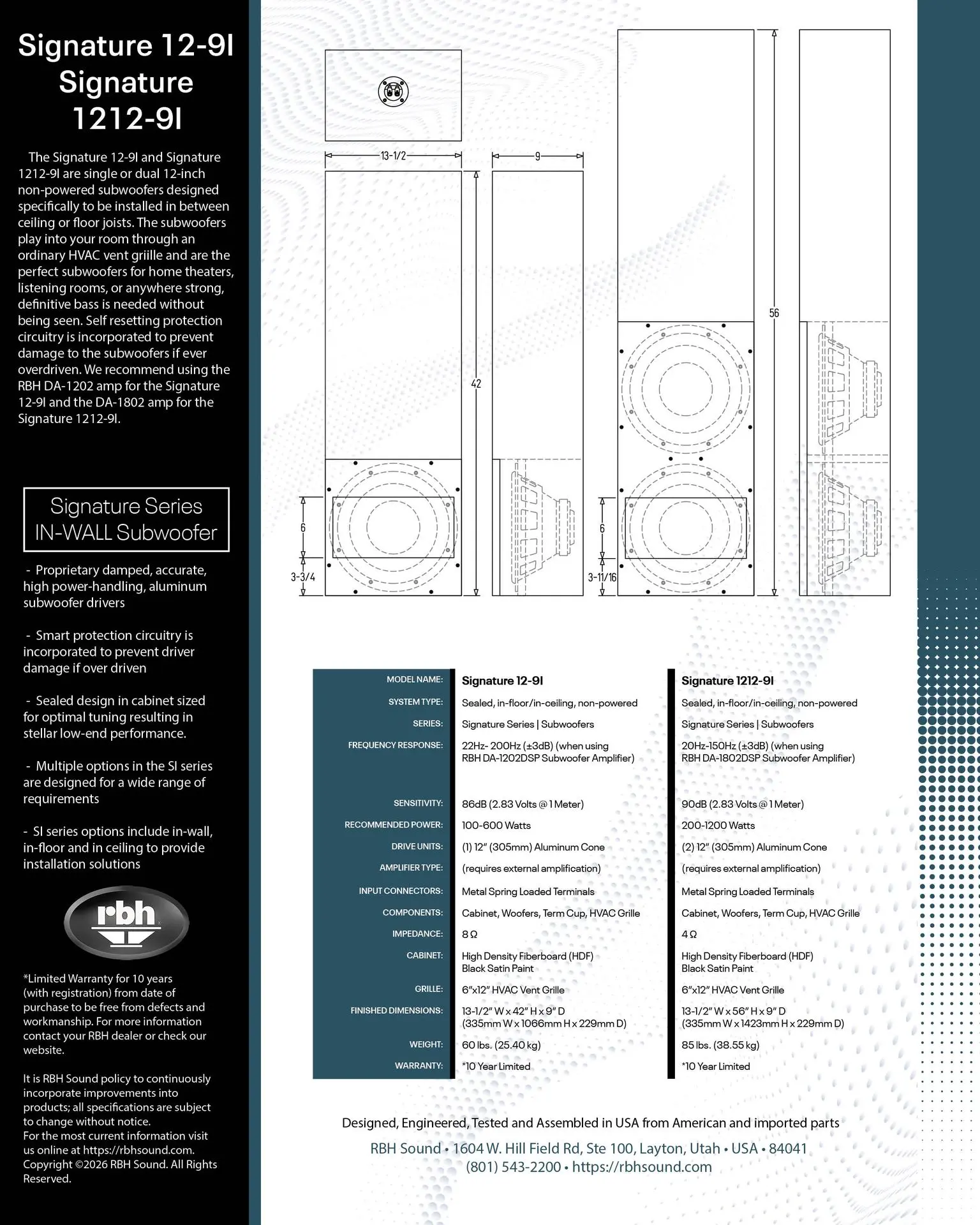

Technical Specifications Sheet
