NOTE: The SVTRS modular tower speakers are a combination of two SV‑831R modular monitor speakers and four SV‑1212NR subwoofers.

UNRIVALED SVTRS-AX:

Recall the moment you first saw a majestic vista, and you will begin to understand what your ears will experience with the flagship, active tower speaker system from RBH Sound:

  • breathtaking spaciousness
  • focused sound stage
  • unrelenting power
  • authority to overwhelm your most intimate senses
You will hear a surprisingly new layer of performance, built upon the unlimited dynamics of the passive SVTRS

The UNRIVALED edition, SVTRS-AX (SV series Tower Reference Speaker - Active Crossover) is your key to a new level of audio awakening, due to the advent of the RBH Sound, AT-AS (Active Time-Aligned System) technology.

FOCUSED ON THE DETAILS
RBH Sound’s UNRIVALED AT-AS technology combines an active crossover, with driver time-alignment filters designed to deliver sounds from each driver in the speaker system to your ears at precisely the same moment. The result is a focus and clarity unlike anything listeners have experienced before.

A DEEPER UNDERSTANDING
Most loudspeakers use a passive crossover network to separate the high, mid and low frequencies of your music and direct them to specific audio drivers (tweeters, midrange and woofers,) designed to best reproduce each range of frequencies. Unfortunately this traditional method has an inherent problem; the from each driver deliver a staggered sound, to your ears. This is what you typically hear from most speaker systems.

The RBH Sound AT-AS technology resolves this issue. The sound from the UNRIVALED SVTRS-AX is the audio equivalent of watching 4K video compared to a standard definition television. The detail, spaciousness, and stereo imaging all come into focus for the first time.

BEDROCK OF SOUND
Your ears hear the sound, but your body feels the impact. The subwoofers of the UNRIVALED SVTRS-AX are tuned below the level of human hearing. This deep impact leaves an impression like no other. The combined power of eight, aluminum, high excursion, 12” drivers mean distortion levels remain ultra low even if sound is played well above reference levels. This speaker system dominates with great power even in the largest listening rooms.

DIRECTED DYNAMICS
Feel the beautifully smooth, yet amazingly dynamic high frequencies of the Aurum Cantus AMT tweeter. It provides sound pressure levels equivalent to the output of a horn, but without the associated harshness or ‘beaming’ effect of a waveguide. Instead, a more subtle effect is obtained through unique placement of three 8” proprietary aluminum mid-bass drivers around the tweeter in a “focused array.” This provides a combined equivalent midrange output of a 15” driver, but uses the physics of the array to shape and direct the energy to the listener.

AMPLIFIED, CUSTOMIZED BLISS
The left and right stereo towers are powered by two, UNRIVALED Alpha Series, rack-mountable amplifiers totaling 7500 Watts of clean power. Although the speakers are very efficient, this staggering amount of energy is necessary to ensure the full dynamic range of the source signal is delivered to the speakers regardless of your listening volume. The AT-AS technology and additional DSP is programmed by RBH Sound and delivered to the amplifiers from an additional rack-mountable component sold as part of the system, or incorporated into certain industry leading surround processors of your choosing. This system can be adapted to meet the specific characteristics of your listening room by authorized RBH installers.

SIMPLY UNRIVALED, SUPREMELY UNIQUE
Each piano gloss speaker module in the system is internally wired with Kimber Kable, damped with multi-layer vibration deadening technologies, internally braced and designed for sand loading. The towers are stabilized with custom UNRIVALED brand Speaker Isolators by IsoAcoustics.

Your UNRIVALED SVTRS-AX is the pinnacle of modern digital sound technology. It is so detailed, so controlled, so powerful and yet so delicate and sonically accurate that it will simply leave you in awe.


The system includes:
  • four jaw dropping, dual 12” aluminum reference subwoofers (UNRIVALED SV-1212NR/D), stacked in a 92” high modular, subwoofer-main-subwoofer tower configuration
  • two main speaker modules (UNRIVALED SV-831R/D), providing nearly unlimited dynamics from a total of six proprietary 8” aluminum mid-woof drivers and two, large Air Motion Transformer (AMT) tweeters
  • One FIR filter Flagship DSP Speaker Management System (rack component)
  • One UNRIVALED Alpha 6x - custom six-channel amplifier (rack component)
  • One UNRIVALED Alpha 2x - custom two-channel subwoofer amplifier (rack component)
  • Two sets of UNRIVALED brand Speaker Isolators by IsoAcoustics
  • SVTR Brace Plate (4)
  • For all Signature SV Series Speakers click here.
    To see all SV-1212 subwoofer options, click here.


    SVTRS-AX TOWER SPEAKER

    RETURN AND REFUND POLICY
    SHIPPING POLICY

THESE ARE ALSO SOLD THROUGH OUR AUTHORIZED DEALERS. EMAIL US OR CALL US (800) 543-2205 WITH ANY QUESTIONS.

NOTE: This item is shipped via LTL truck freight to avoid potential shipping damages through courier services.

Model Name:
UNRIVALED SVTRS-AX
Series:
Signature SV UNRIVALED
System Type:
Three-way Reference Modular Tower Monitor System
Frequency Response:
20Hz-35kHz (±1dB), -3dB 17Hz
Woofers:
(4) 12" (305mm) Reference Aluminum Cone Subwoofers
Midrange:
(3) 8" (203mm) Aluminum Cone
Tweeter:
(1) 4.72" X 1" (120mm x 25mm) Air Motion Transformer
DSP Active Crossover Frequencies:
100Hz, 2000 Hz
Crossover Filters:
FIR Linear Phase
12dB/Octave 108dB/Octave
Amplifier Power:
1500W x 4 (Woofer)
500W x 2 (Miderange)
250W x 2 (Tweeter)
Cabinet/Color:
Medium Density Fiberboard (MDF)/Standard High-gloss Black
Grille:
Black Fabric

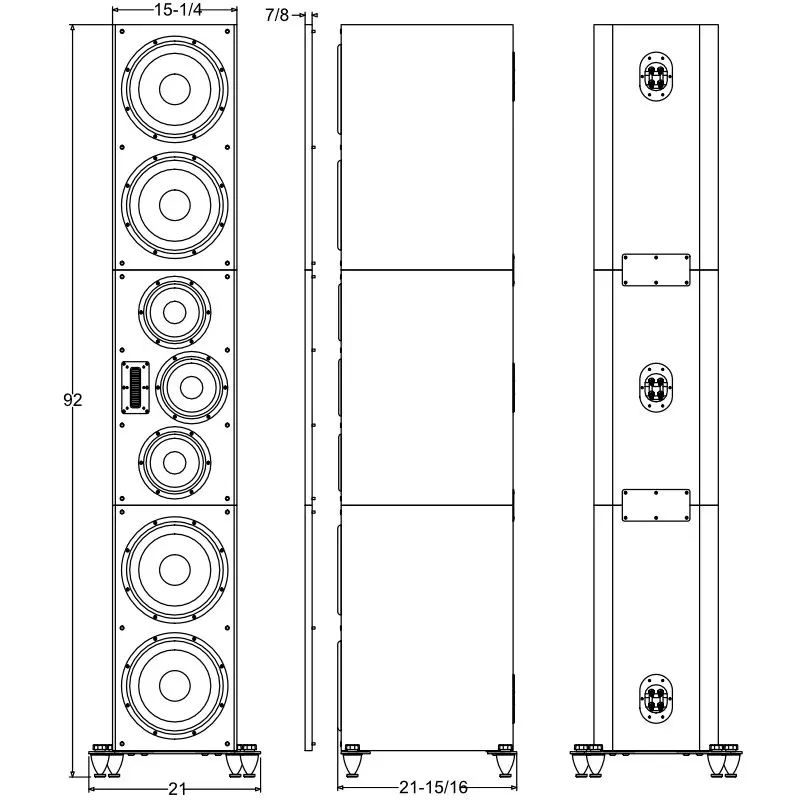

Dimensions:
15-3/16" W x 92" H x 22-3/16" D
(386mm W x 1981mm H x 564mm D)
Weight:
310 lbs (141kg)
410 lbs. (186 kg) with optional mass loading
Warranty:
5 Years

* Warranty period: 5 years on the cabinet and woofers, and 1 year on the amplifier.
